TN-8 Tipped Saw Blade Grinding

เข้าชม 120 | ตอบ 0

TN-8 Tipped Saw Blade Grinding

  • รหัสสินค้า : TN-8
  • ยี่ห้อ : Tokainetsushori
  • รุ่น : TN-8

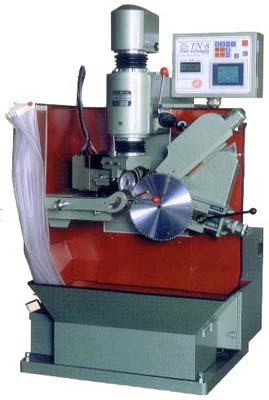

  • TN-8 Tipped Saw Blade Grinding Machine
    (Dedicated Clearnce Type)





    Features


    1. Interactive settings
    2. Triple surface, even grinding with one setting
    3. Numerical setting of the relative tooth height (in increments of 1/100mm)
    4. Direct drive of the grinding wheel spindle using a special motor
    5. The special motor generates up to 1.6 hp of power to the grinding wheel and hardly falls from that level

    Blade Types

    1. Flat top
    2. Alternate top bevel
    3. Combination tooth (blades with a combination of one flat top tooth followed by a number of alternate bevel teeth)
    4. Triple chip grind (45-degree, three surface)
    5. Single corner rounded
    6. Triangular tooth


    Specifications


    Plate dimensions 150 - 710mm
    Grinding pitch 5 - 80mm
    Tooth feed/grinding speed 10-step gearing, 4P to 16P (per minute)
    Grinding stone inclination 0 to 45-degrees
    Grinding stone dimensions Dia. 140mm
    Grinding stone RPM 4,100 RPM
    Grinding stone motor output(special motor) 0.4 to 1.2kW
    Drive motor output 200W
    Grinding stone inclination control motor output 100W
    Blade thickness control motor output 6W
    Cutting oil motor output 40W
    Installation footprint 900 × 780mm
    Machine dimensions(height X width X depth)

    1,720 × 1,100 × 1,000mm

    Machine weight 700kg


    Tooth Types







    1. Left and right in the drawing above can be reversed by the combination tooth set switch or inversing the blade.
    2. G, H, I, J, K, L, Triple C, and Triple D tooth shapes are on reserve (they are open as a pattern setting option).
    3. In addition to the above, you can create settings for the tooth shapes you want.
    4. Furthermore, by changing the combination tooth counter, the grinding of saw blades with different positions for flat teeth, etc., can be done for tooth shapes such as A, B, C, D, E, and F. You can also make combinations with recesses, etc.
    5. As an option, we can also program the machine with other tooth shapes for you.

    <<Download PDF>>
