TN-85 Grinding Machine For Tipped Saw Teeth

เข้าชม 14721 | ตอบ 98

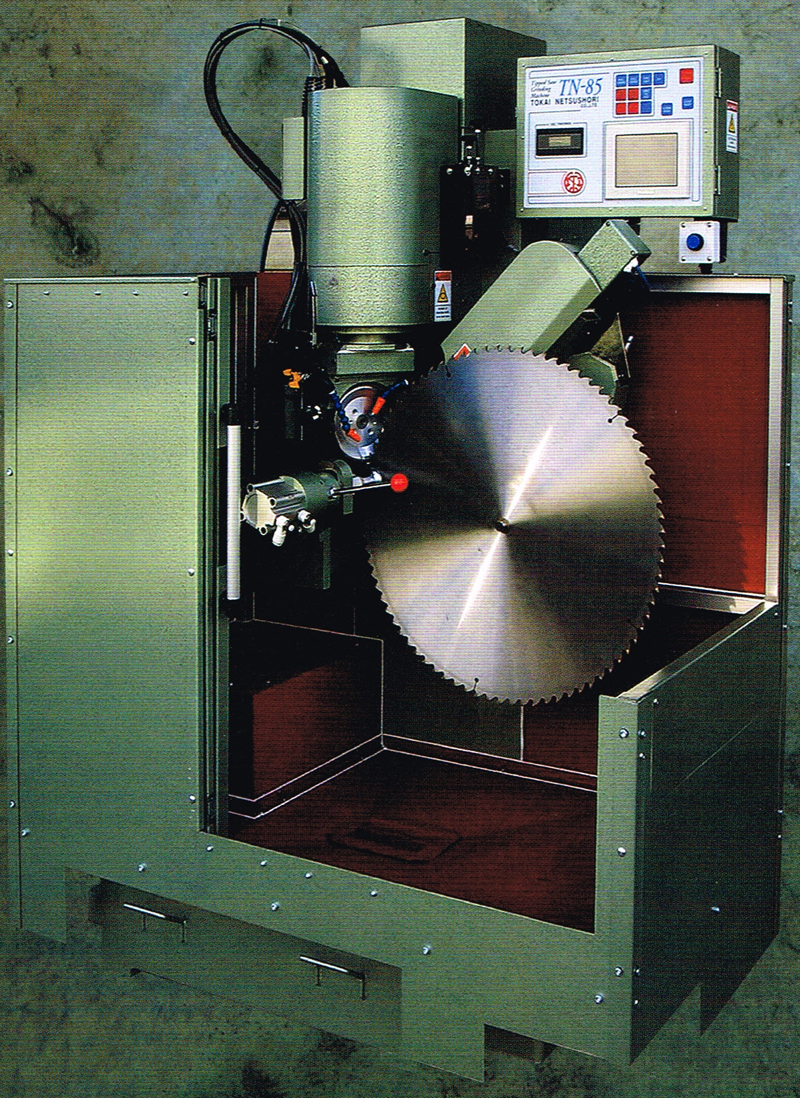

TN-85 Grinding Machine For Tipped Saw Teeth

  • โทรสอบถาม 0993233577
  • รหัสสินค้า : TN 85
  • ยี่ห้อ : tokai netsushori
  • รุ่น : TN 85

  • TN-85 Grinding Machine For Tipped Saw Teeth (For Top/For Top and Rake)

    Features


    1. Main setting on a touch panel.
    2. Servo motor control.
    3. Significant improvement in rigidities of grindstone shaft and sliding section.
    4. Breaker, nega, chamfer are grindable by TN-85 for Top and Rake type.
    5. Diamond (PCD) saw can optionaly be used.


    Permissible grinding saw blade

    1. For Woodworking
    2. For Nonferrous metal
    3. For Steel (Cold Saw)


    Specifications

    Permissible grinding dimension 180~710 mm
    Permissible grinding pitch 5~100 mm
    Permissible grinding thickness 1~5 mm
    Permissible grinding tilt angle 0~45°
    Grindingstone dimension 140~150φ mm
    Top angle 8~20°
    Rake angle -30~25°(-30°は405φ mmまで)
    Grindingstone
    (motor output)
    0.4~1.2kW
    Machine dimension (height x width x depth)

    1,760×1,240×1,130 mm

    Machine weight 850kg





    FEATURES (TN 8D)

    - Diamond (PCD)saw can be ground through modified grindstone ball crew and grindstone servo motor and,an automatic dresser.









    <<Download PDF>>
