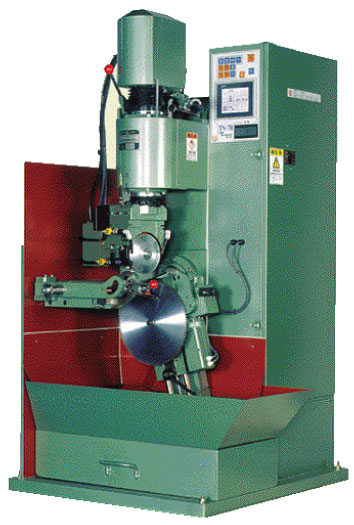

TN-70 Tipped Saw Blade Grinding Machine(Specialized Clearance and Rake)
Special Features
Numerical control of the clearance and rake angles
Clearance and rake can be done with a single pass, and it is easy to switch the oscillation.
Each setting is interactive and numerically controllable
Combination-teeth with differing rake angles (such as flat / alternating teeth) can be ground in one process
With its specialized motor, it has got the horsepower to prevent slower spinning of the grinding stone even when under heavy loads
Direct drive with a combination grinding wheel/motor spindle
Blade Types
Flat top
Alternate top bevel
Combination tooth (blades with a combination of one flat top tooth followed by a number of alternate bevel teeth)
Specifications
Plate dimensions
150 - 660mm
Grinding pitch
5 - 75mm
Tooth feed/grinding speed
10-step gearing, 4P to 16P (per minute)
Grinding stone inclination angle
0 to 20-degrees
Grinding stone dimensions
Dia. 140mm
Grinding stone RPM
4,100 RPM
Grinding stone motor output
(special motor)
0.4 to 1.2kW
Max. power consumption
1.5kw
Installation footprint
865 × 965mm
Machine dimensions
(height X width X depth)
1,800 × 950 × 1,065 mm
Machine weight
730kg
Normal Tooth Patterns (Maker Programmed)
Left and right in the drawing above can be reversed by the combination tooth setting switch or inversing the blade.
F, G, H, I, J, K, and L tooth shapes are on reserve (they are open as a pattern setting option).
In addition to the above, you can create settings for the tooth shapes you want.
Furthermore, by changing the combination tooth counter, the grinding of saw blades with different positions for flat teeth, etc., can be done for tooth shapes such as A, B, C, D, and E. You can also make combinations with recesses, etc.
As an option, we can also program the machine with other tooth shapes for you.
