TN-7 (Top/Rake Type)

เข้าชม 9986 | ตอบ 177

TN-7 (Top/Rake Type)

  • รหัสสินค้า : TN-7
  • ยี่ห้อ : Tokainetsushori
  • รุ่น : TN-7 FortopandRake

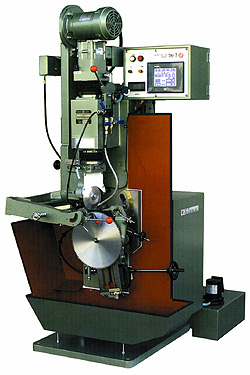

  • TN-7 Carbide-Tipped Circular Saw Blade Automatic Grinding Machine (For Top and Rake)

    Special Features

    1. All tooth set types can be selected on the LCD screen (touch panel type)
    2. Tooth sets are numerically inputted, so combinations of your choice are possible
    3. Numerical setting of the grinding stone inclination angle
    4. Variable tooth feed speed and variable tooth grinding speed
    5. Digital display of blade thickness centering
    6. A buzzer sounds when the grinding operation is complete and all machine functions shut down automatically

    Specifications

    Blade dimensions 152 - 510mm
    152 - 610mm (for clearance)
    Grinding pitch 5 - 80mm
    Tooth feed/grinding speed 5P to 16P (per minute), variable
    Grinding stone inclination angle 0 to 20-degrees
    Grinding stone dimensions Dia. 140mm
    Grinding stone motor output 750w
    Grinding stone RPM 4,500 RPM
    Drive motor output 400w
    Cutting oil motor output 40w
    Installation footprint 575 × 755mm
    Machine dimensions (height × width × depth) 1,840 × 920 × 850mm
    Machine weight 520 kg

    1. Because the inclination angle of the diamond wheel is input electronically, there is no shock. (maximum 20°)
    2. Automatic forced circulation of oil to the diamond wheel’s spindle ensures precision over a long period of time.
    3. Digital display of blade thickness centering (5/1000mm)
    4. Since this is a vertical type machine, it suffers less from dust and grime compared to a horizontal type machine. Also, because there is less load with its vertical spindle, it lasts longer.
    5. Variable and independent tooth feed speed and tooth grinding speed
    6. In addition to the 6 basic tooth set patterns, 9 additional, optional, special types can be added
    7. Each setting is interactive and numerically controllable
    8. Since this is a vertical type machine, it uses very little space


    Normal Tooth Patterns (Maker Programmed)





    << Download PDF>>
